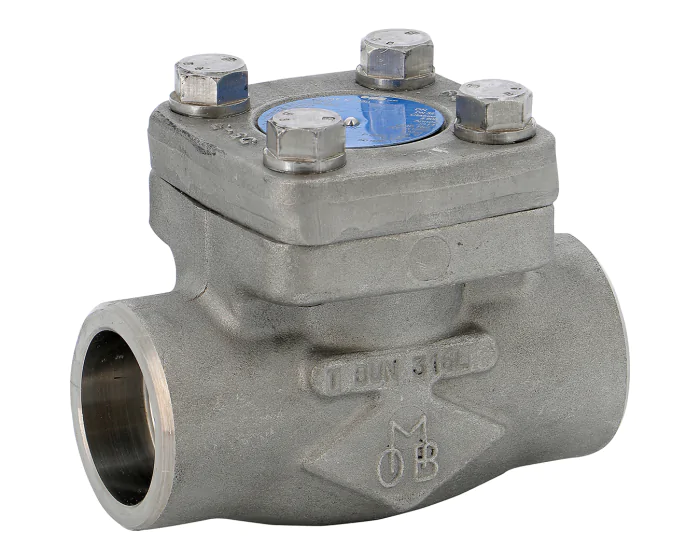

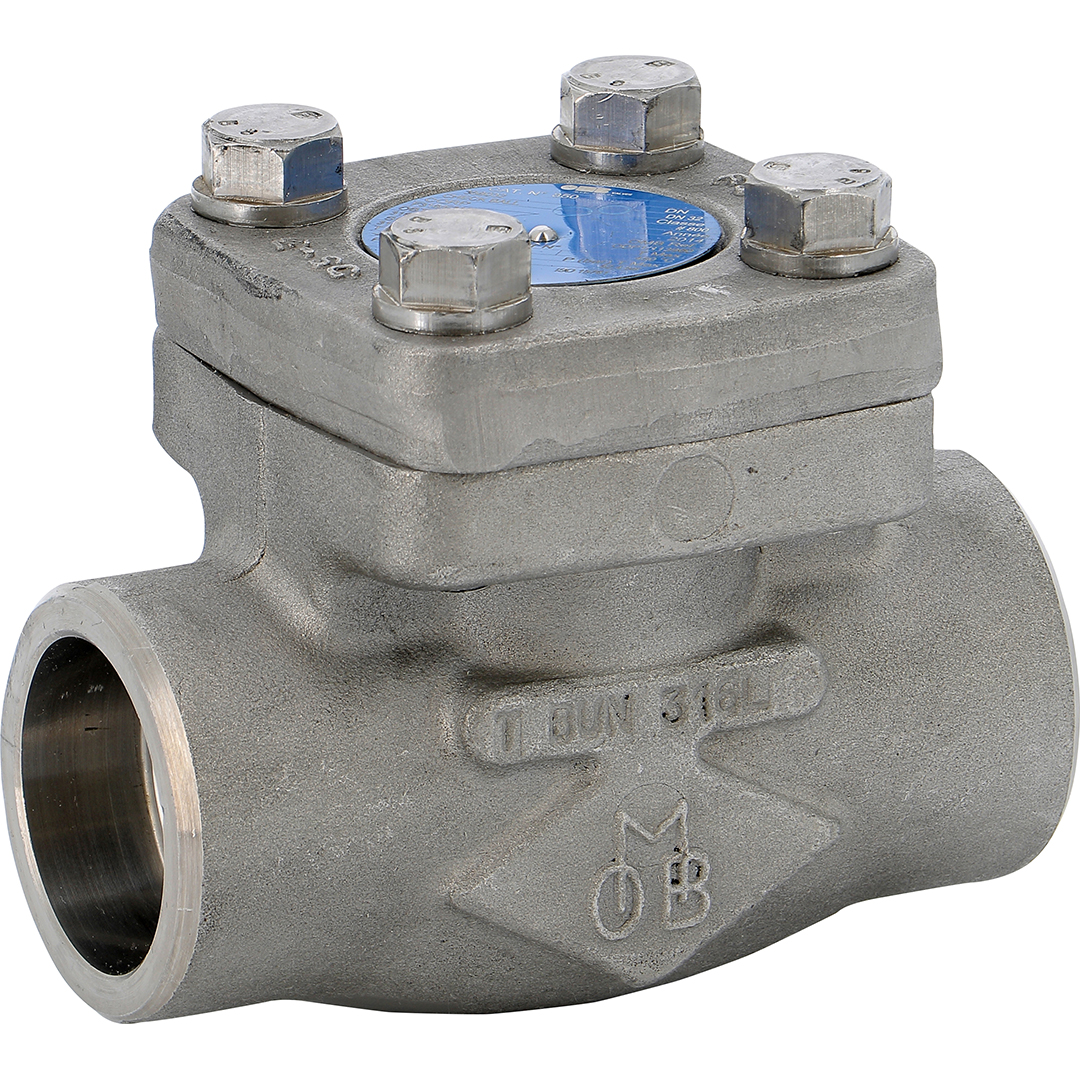

The check valve series 358, TRIM 10 in forged stainless steel with ball with welding SW spring, standard bore, bolted bonnet, class 800 for oil, steam and high pressure industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Stainless steel ASTM A182 F316 |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 10 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 80.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 0.9 |
| Body material | Stainless steel F316/F316L |
| Bore | Standard |
| PS (bar) | 132 |
| Connections | Welding SW |
| Seats | Stainless steel ASTM A479 type 316 |
| TS max (°C) | 538 |
| TS min (°C) | -49 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Plug material | Stainless steel ASTM A470 AISI 316 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Stainless steel F316/F316L Standard DN15 - 1/2'' | 358015 | S1007413 |
€141.03
(excl. btw)
|
add to cart |
| Welding SW Stainless steel F316/F316L Standard DN20 - 3/4'' | 358020 | S1007414 |
€157.76
(excl. btw)
|
add to cart |
| Welding SW Stainless steel F316/F316L Standard DN25 - 1'' | 358025 | S1007415 |
€231.79
(excl. btw)
|
add to cart |
| Welding SW Stainless steel F316/F316L Standard DN40 - 1''1/2 | 358040 | S1007416 |
€466.59
(excl. btw)
|
add to cart |
| Welding SW Stainless steel F316/F316L Standard DN50 - 2'' | 358050 | S1007417 |
€605.81
(excl. btw)
|
add to cart |
